Work Page 4-19

Jeremy's Vega Style M Conversion
11-13/16 Rim assembly from Tenor
Eastman Conversion neck
Add inlay-frets-finish
Setup to play

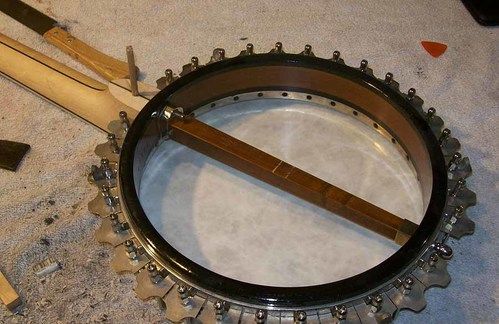

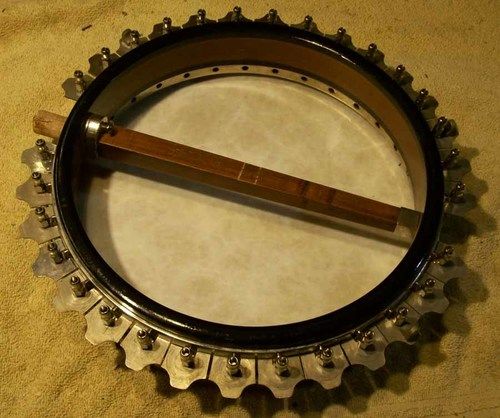

Rim /Dowel from Open back Style M
Flanges polished and added

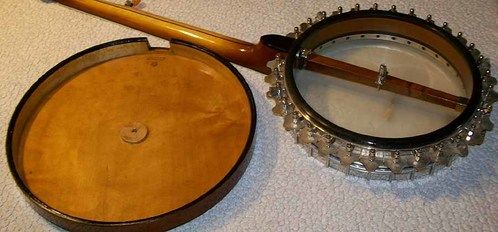

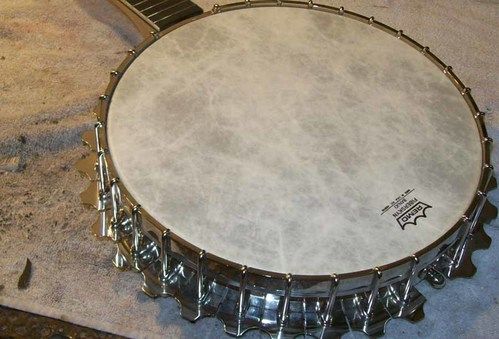

Resonator hardware added

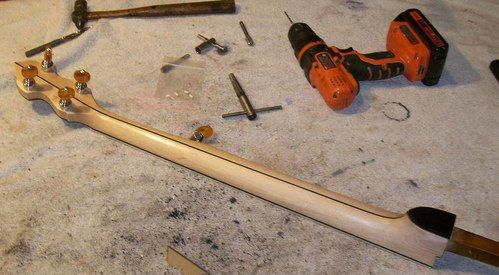

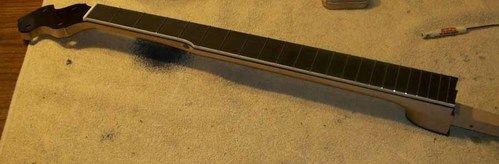

Eastman neck, must pull frets to inlay

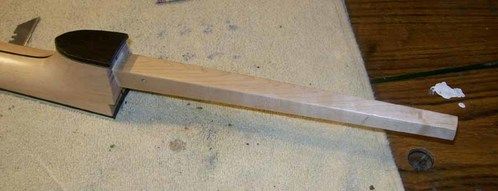

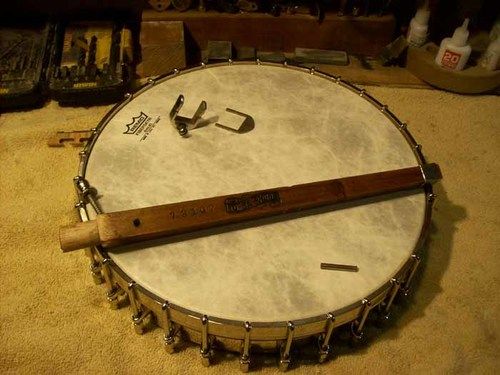

Dowel will be replaced with orig.Vega

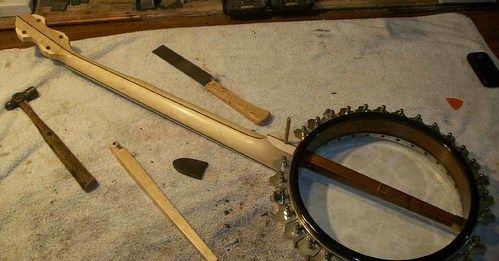

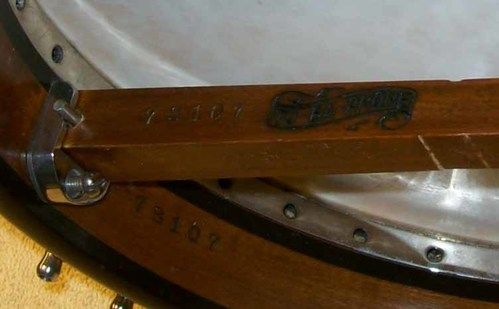

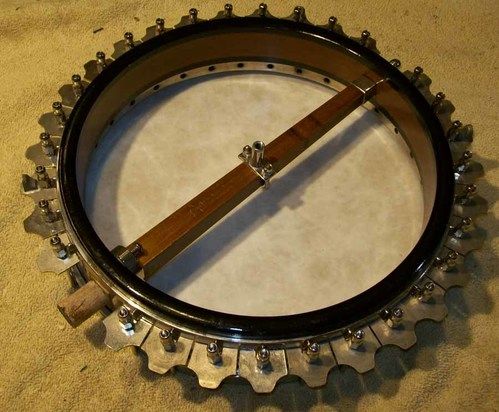

Dowel out, orig. dowel fitted

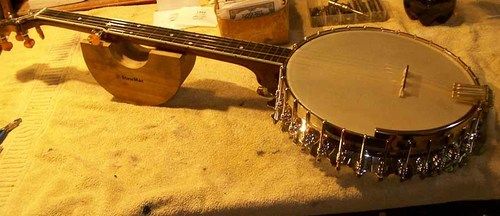

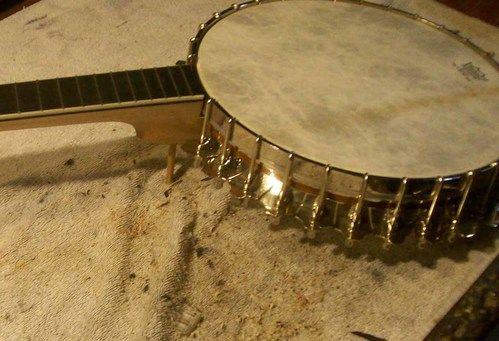

Checking hardware fit before glue
Neck angle OK
Elevation OK

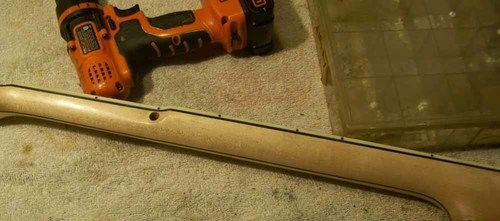

Picking out MOP and 3/32 Side Marker Material

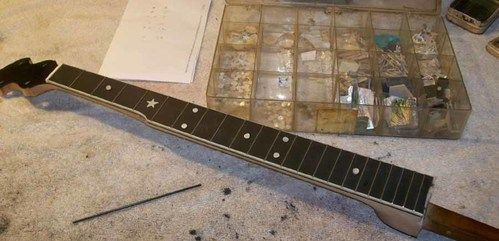

Markers in

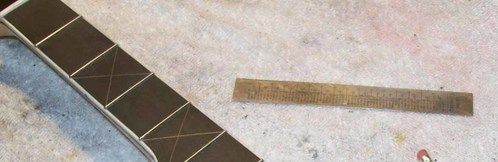

Marking for inlay, standard Tubaphone

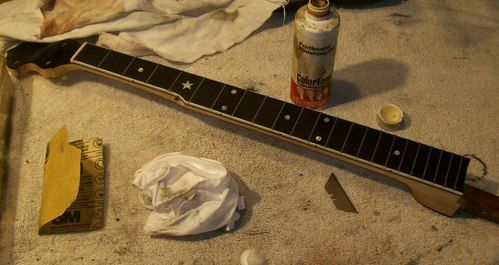

Completed, fingerboard oiled, frets dressed

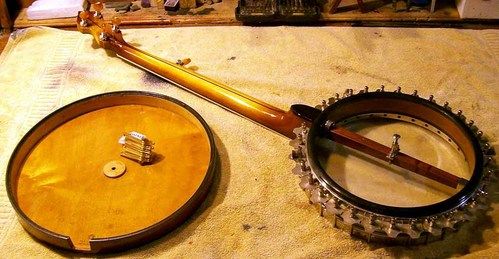

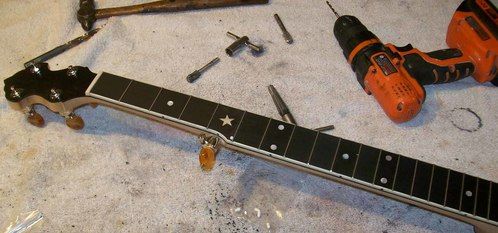

Fitting the hardware, setting the pip
Now I will strip it down and prep for tint

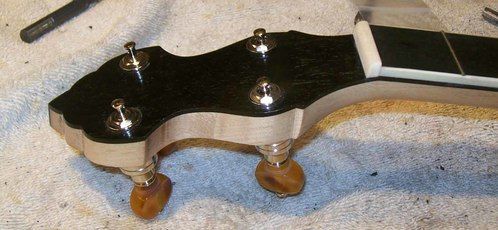

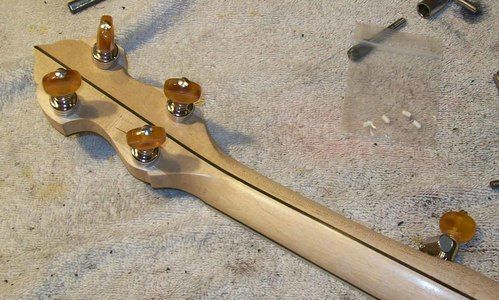

The Eastman necks have a thick peghead at the lower pegs

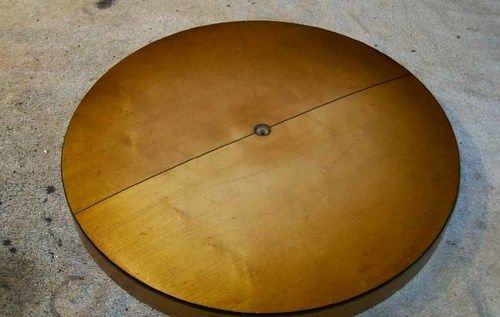

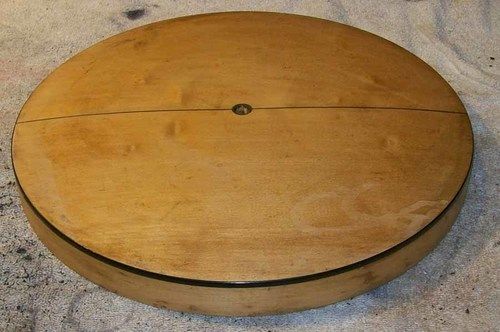

Resonator, ready to strip

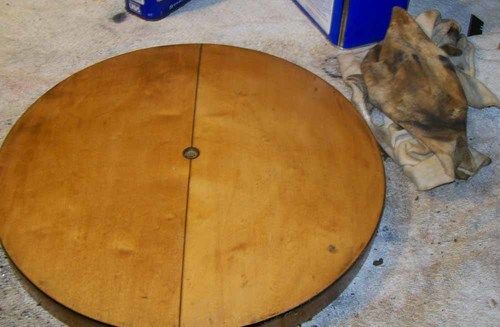

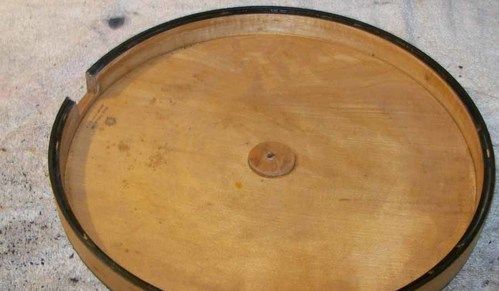

Inside stripped

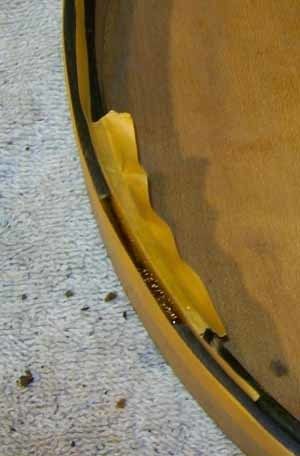

Small repair to the top lip

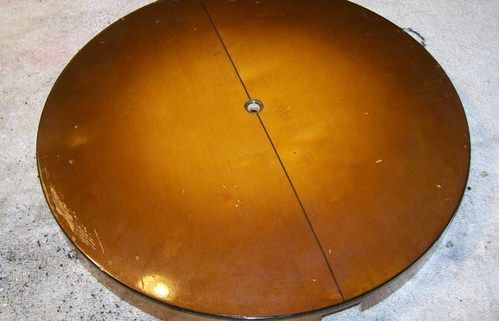

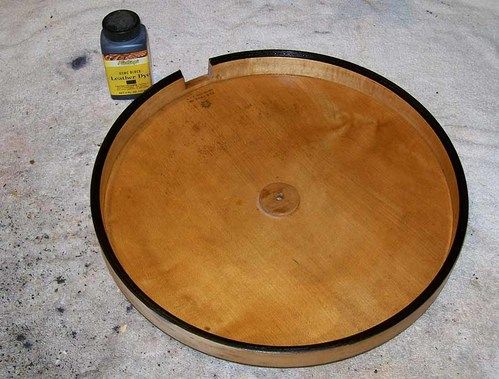

Edge repaired and dyed, first clear coat

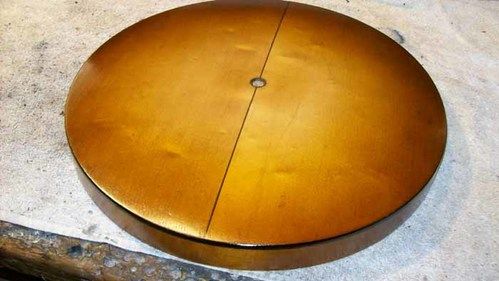

1st and 2nd tint coat, vintage maple

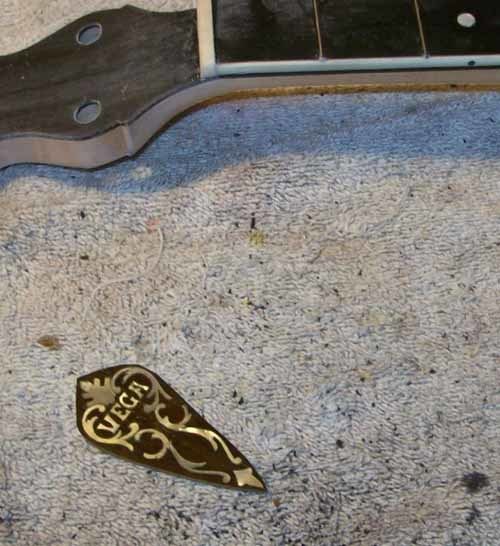

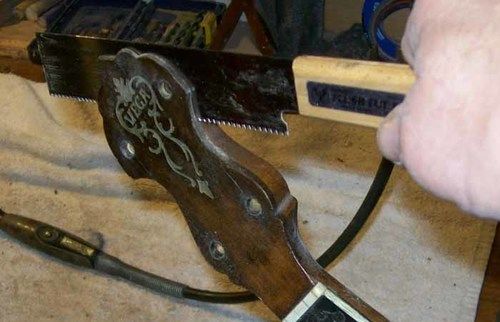

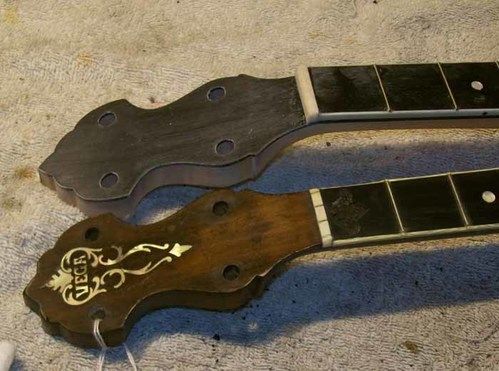

Donor neck-Peghead overlay

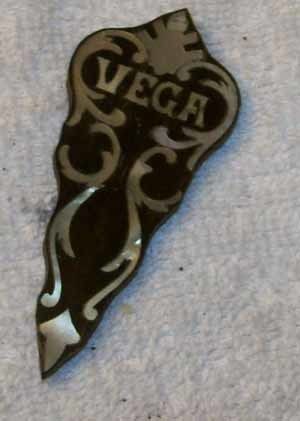

This will be installed in one piece.

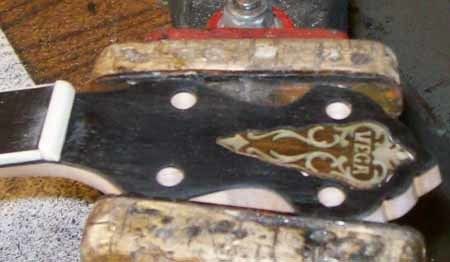

Trimmed down
Cavity cut, ready to seal

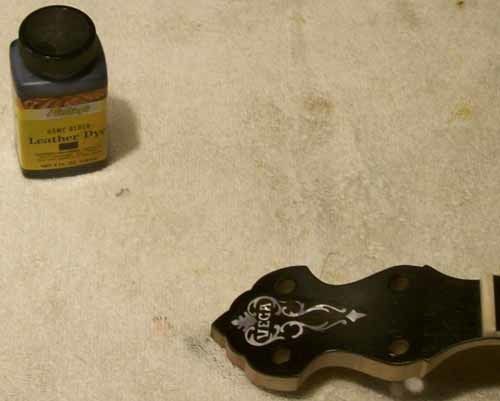

Leveled - dye for the Pear wood

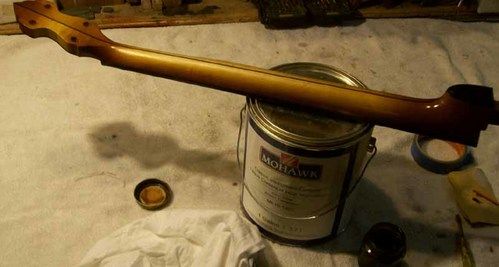

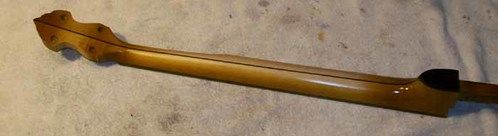

First tint -vintage maple-50s Vega style pattern
2nd coat maple, next-honey amber

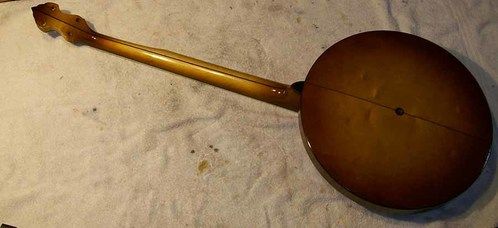

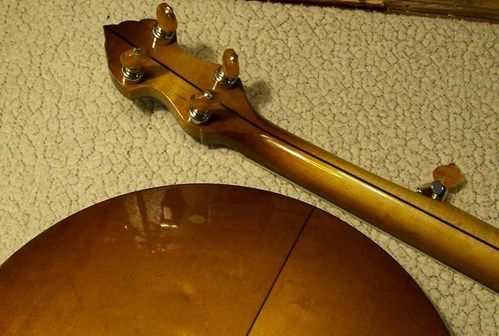

Tint complete-1st clear coat
Neck complete, renaissance head,ready for setup

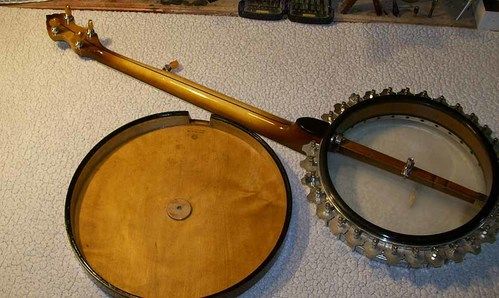

Will use an un-plated Tension Lock until the other is completed

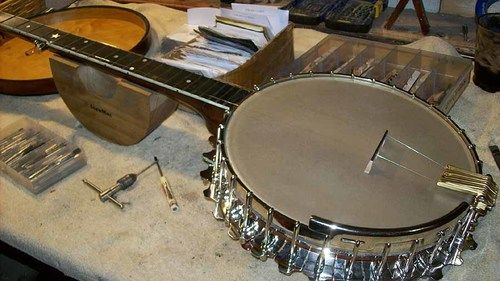

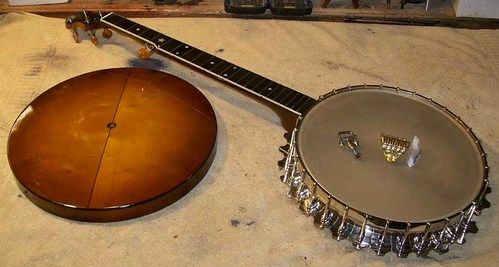

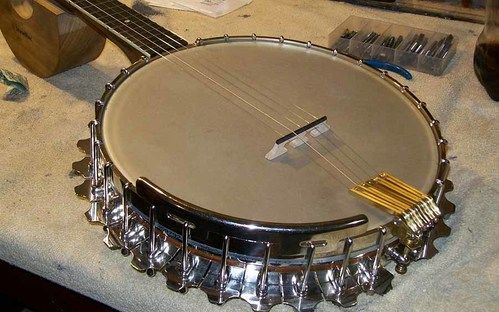

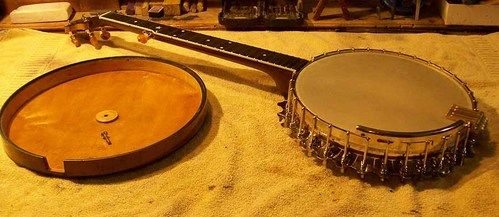

Ready to string
Bridge position optimal for full warm tone.

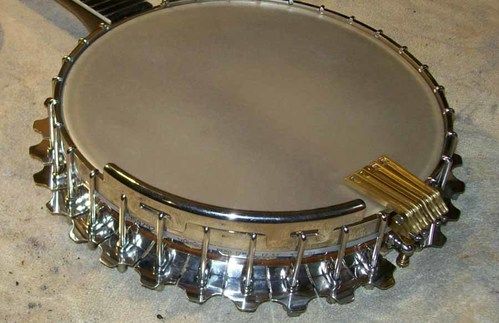

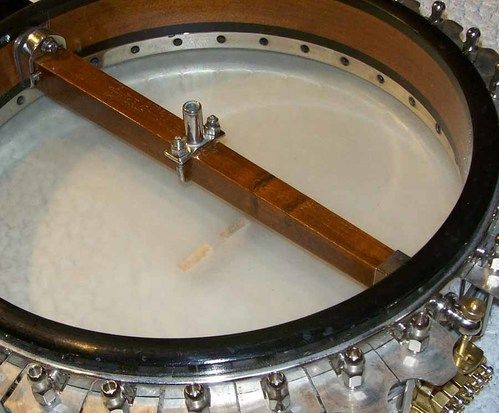

Tension lock gives excellent downforce
5/8 bridge, good action, settling in.

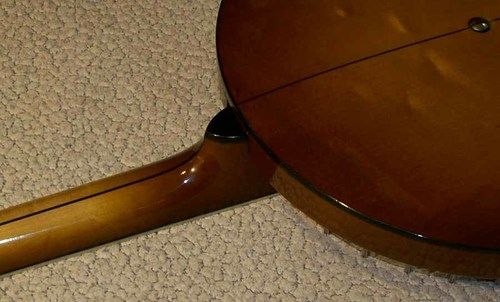

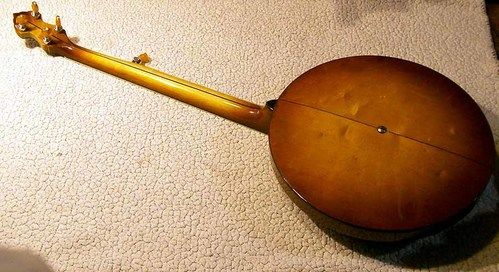

FINAL PICS

Instrument is settling in nicely
Has a rich full tone and notes well up and down the neck.
Now to get it into it's new case, and off to Jeremy for a test drive.
Thanks for looking, and thanks for all of your support over the years.
Vinnie
