Tyler Jackson's

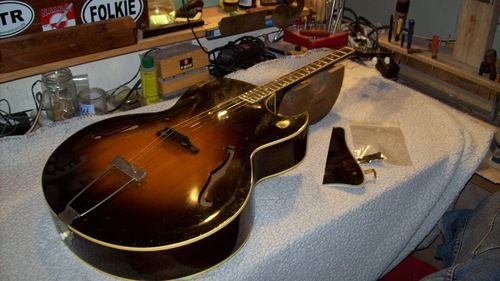

1950s Gibson TG 50
Purchased as project

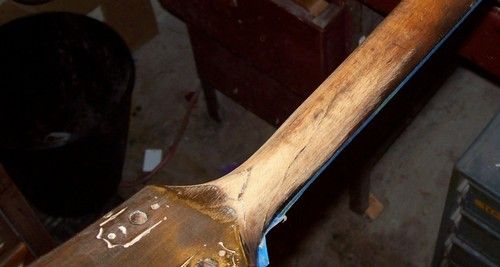

Previous head stock break, was repaired-stable-needs cosmetics.
Make into Cutaway-Right hand
Spot finish with nitro, to match
Previous head stock break, was repaired-stable-needs cosmetics.
Make into Cutaway-Right hand
Spot finish with nitro, to match
Prepping old repair for finish
Tint coat/Clear coats being applied

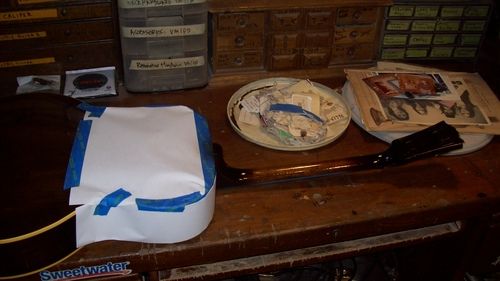

Will add clear while I do the cut.

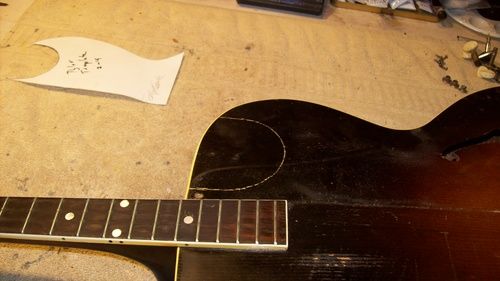

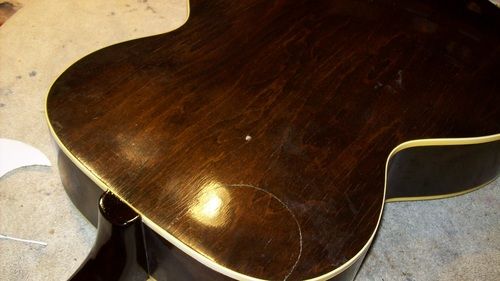

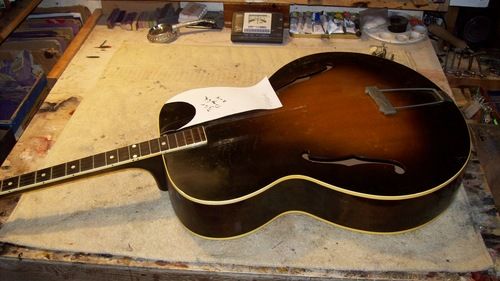

Template from TJ, from another Gibson
Neck cosmetic's underway, taking on clear now
No second chance!
Now to saw the binding in 4 places and make the cut
Well past the point of no return :)

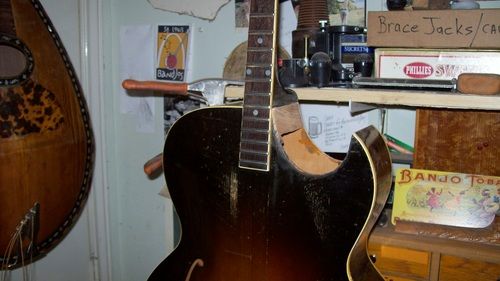

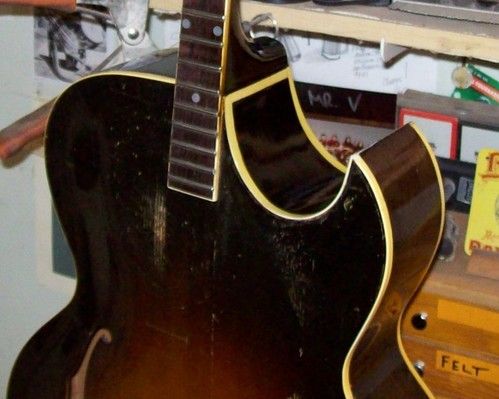

Almost perfect cut, right to neck block

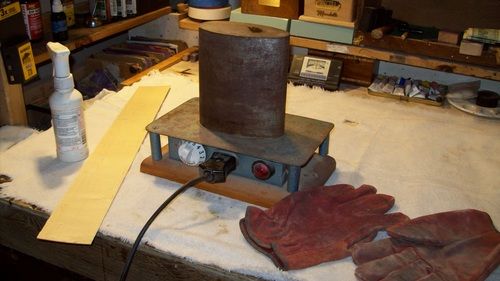

Inflatable Drum sander great for the profile sanding
Coming in to the heel
At the stopping point

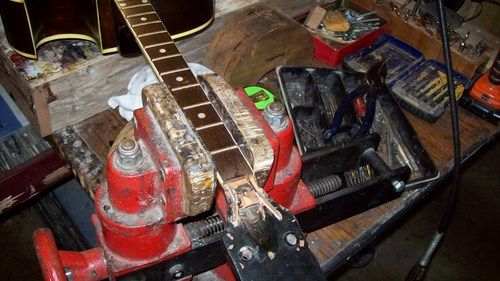

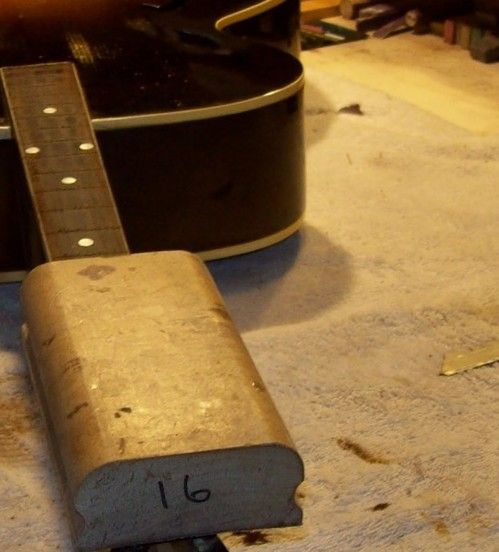

Prep board for 16" radius
Moving along, watching progress

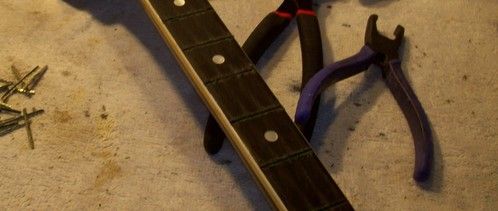

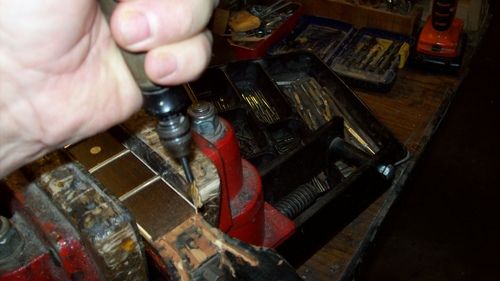

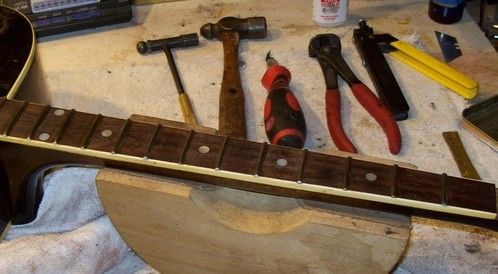

Installed wide fret wire, .113"

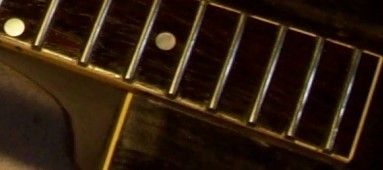

Extension fretted-no compression

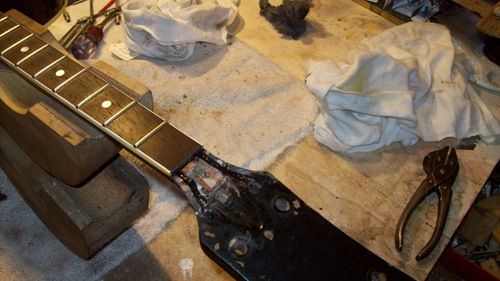

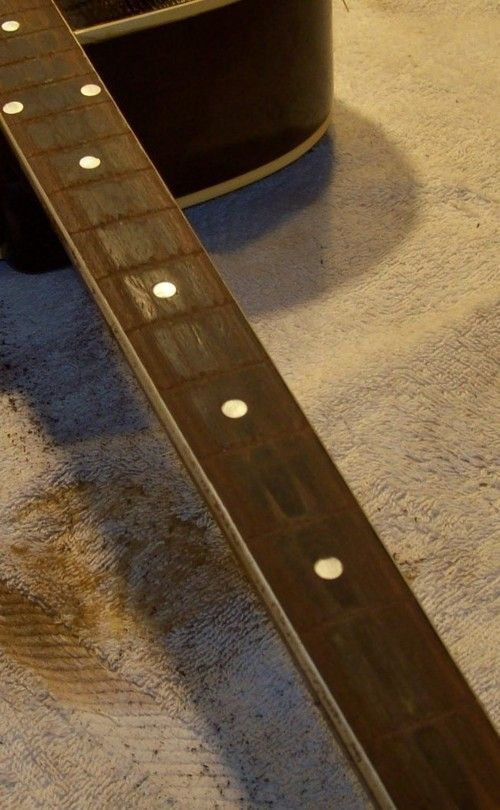

Board ready to oil, frets ready to dress

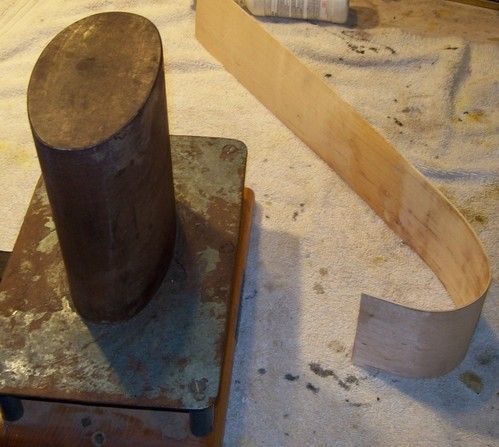

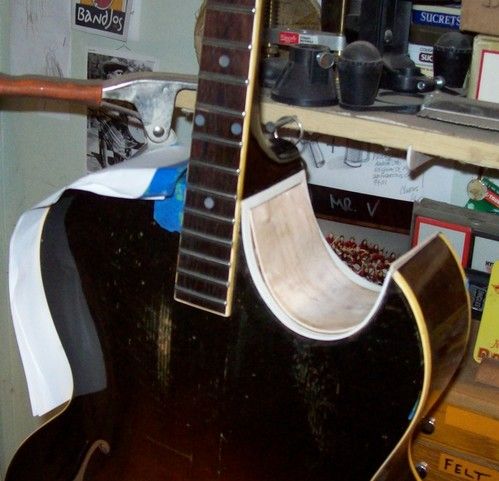

Ready to bend the Maple

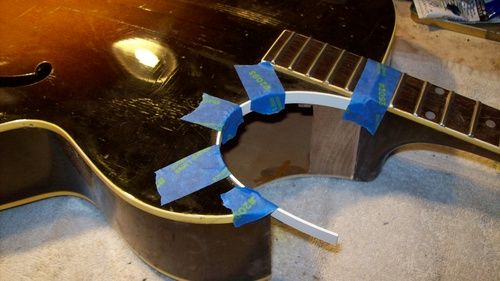

Binding first, then backing

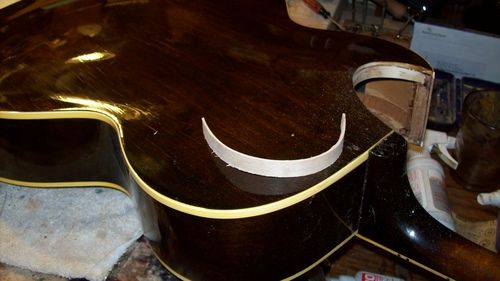

Getting ready to bend the insert
Backing wood bent to profile

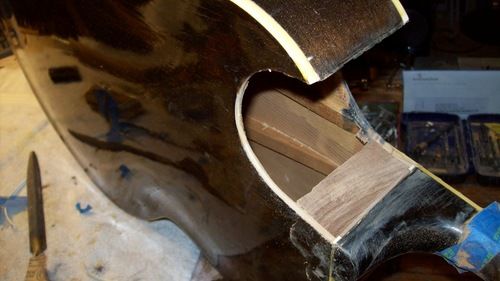

Glued into place
Now for the main section

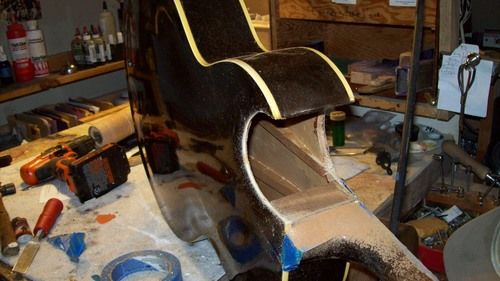

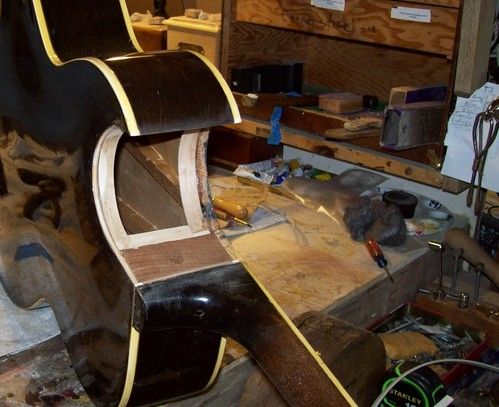

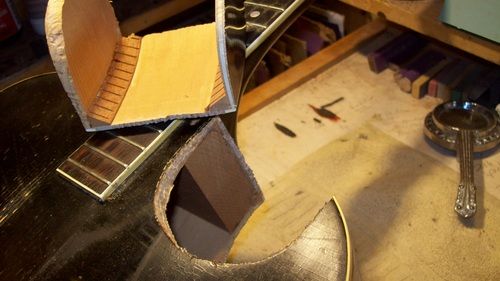

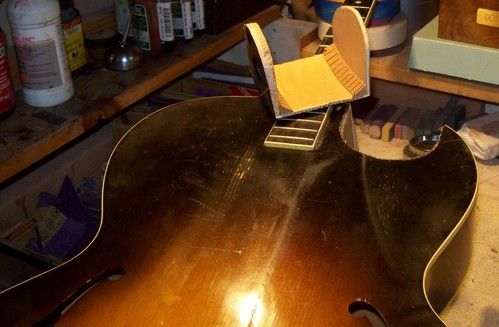

Dry fitting the section

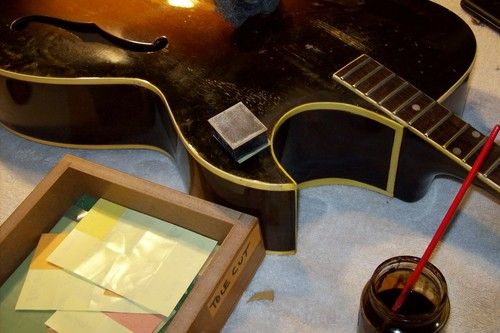

Color on, binding tinted, now for the front lip

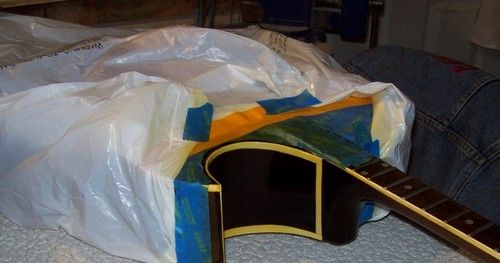

Final clear coats on the section

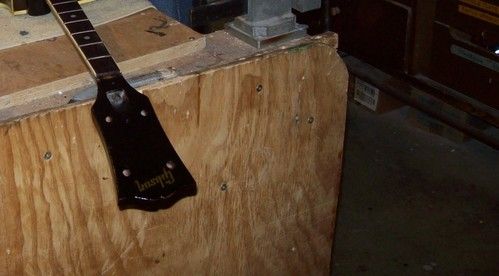

PEG HEAD RE-INFORCEMENT
I am adding 2 steel rods (Banjo tension hooks) as "rebar" to span the break on both sides.
This makes for some "insurance", compared to just a glue and clamp.
This type of break, due to the truss pocket can be tricky since it is an adjustable truss that adjusts at the top.
Every effort must be made to keep it adjustable
I am adding 2 steel rods (Banjo tension hooks) as "rebar" to span the break on both sides.
This makes for some "insurance", compared to just a glue and clamp.
This type of break, due to the truss pocket can be tricky since it is an adjustable truss that adjusts at the top.
Every effort must be made to keep it adjustable

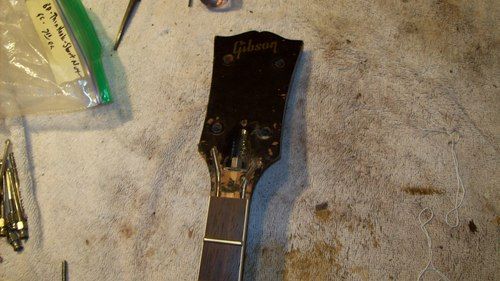

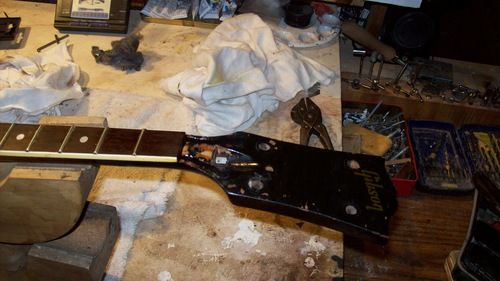

cutting channels for 2 reinforcement rods
They go 1/2" up into each side of the neck, spanning the break
Set to depth, CA will be used to encapsulate rods
Filled to the top, curing
Re-bar set, ready to profile,dye,add finish

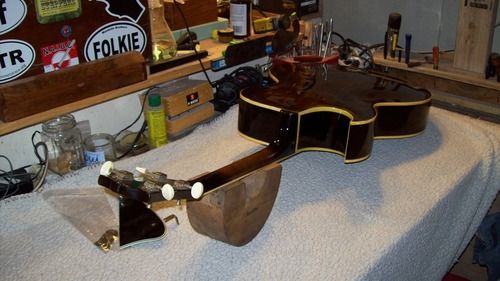

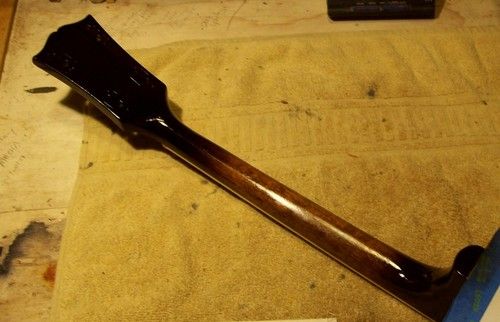

The whole neck will be taking on clear now, waiting on new truss cover.

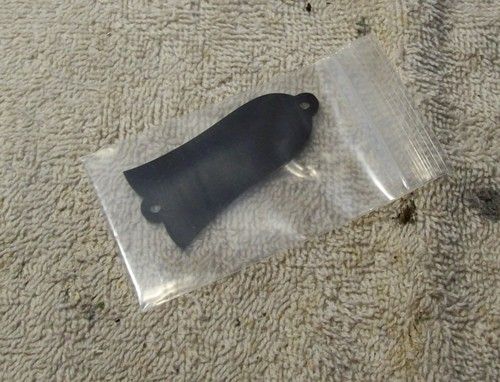

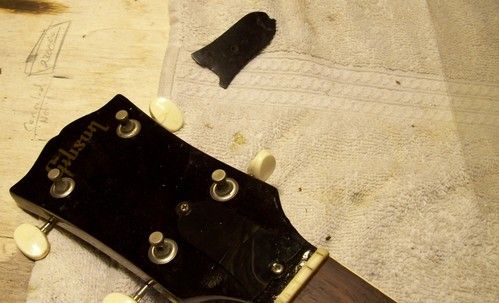

New Truss cover from Ritchie Dotson
Working some tinted finish into the edges, block sanding
FINAL PICS

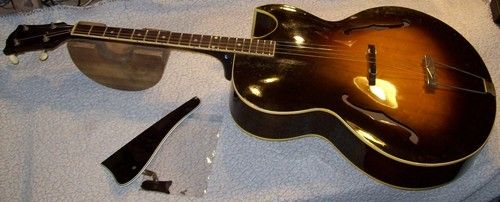

Strung to pitch, pick guard ready to cut
I made a pick guard for it, with a cut, so that it would have something until TJ gets the pickup.
Black/White/Black, with a slight tint to yellow the white for patina.
This can be a pattern when they cut for the pickup
Black/White/Black, with a slight tint to yellow the white for patina.
This can be a pattern when they cut for the pickup

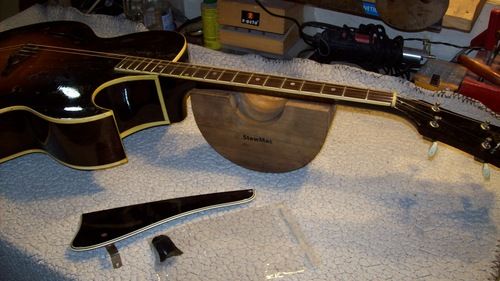

FINAL PICS
Now for some settling in time, final tweaks, then off to TJ it will go for testing.
There, it will get a new slim line floating pickup, and the pickguard cut to fit the new profile.
Thanks for watching and sharing.
Vinnie
