Work Page 7-23
BD Silver Bell No.2
Repair and refinish /make playable

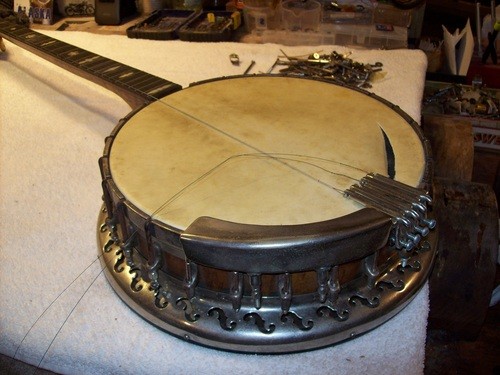

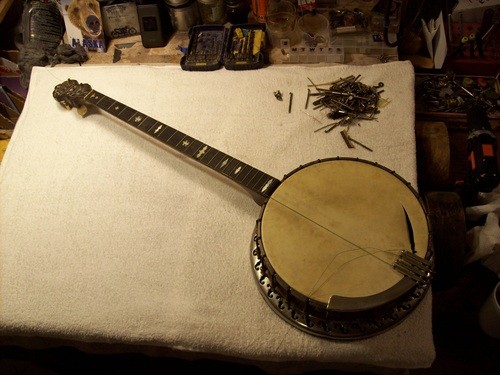

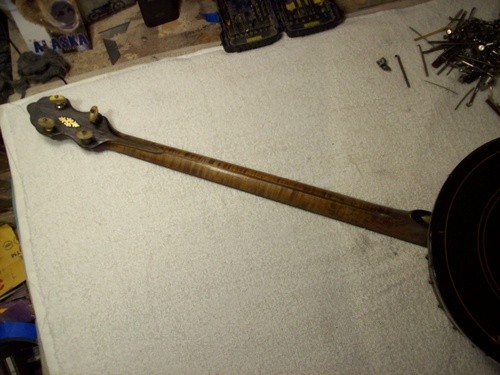

This instrument is a possible transitional/floor sweep
It has Silver plating as a No. 2, with a Nickel plated flange / tailpiece/armrest like a N0.1
It has No.2 inlay and flamed maple
Dowel is orig., but not stamped

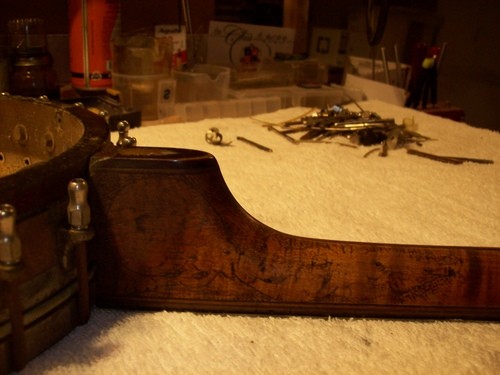

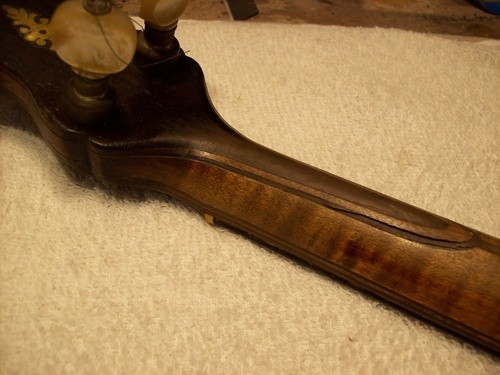

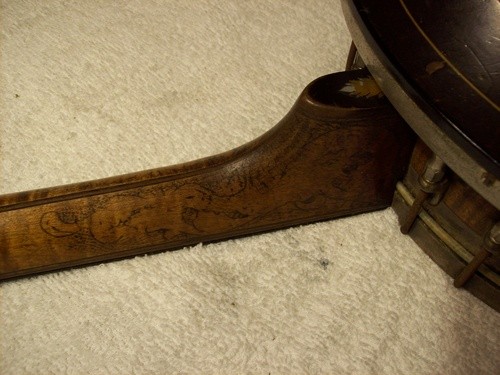

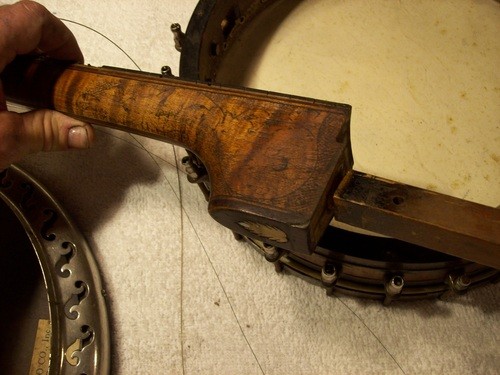

Neck had orig. carving, which appears to have been removed on purpose.

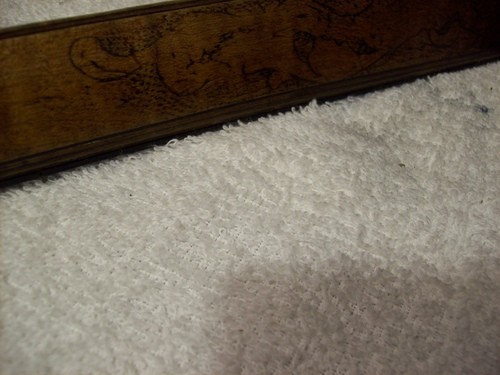

There is a vestige of it left and it will remain.
All I can gather is someone did not like the feel of carving when they played up the neck?
Rim has serial number

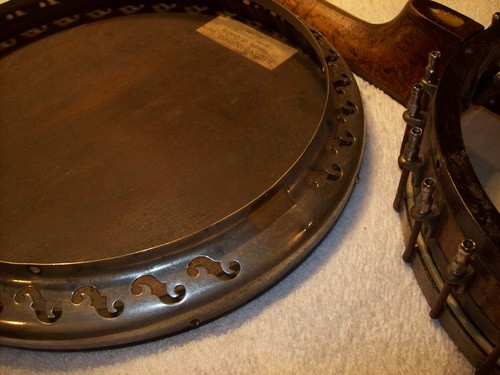

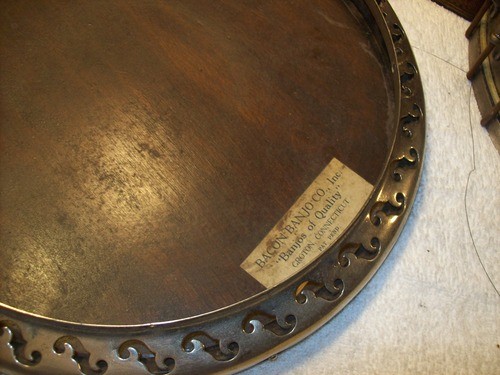

Resonator has paper label

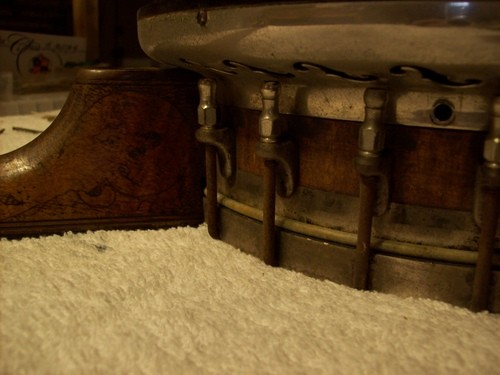

It has an assortment of tension hooks, with 3 styles of Bacon nuts
King Armrest

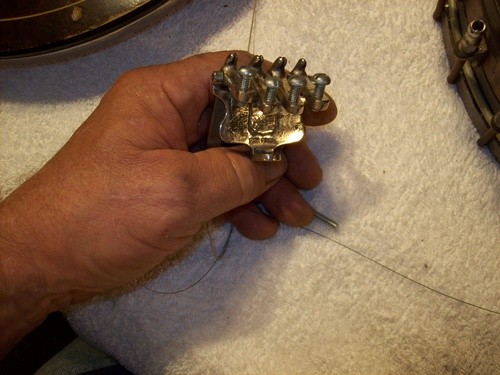

Pat. Pend. Oettinger tailpiece, missing all orig. thumbscrews
Neck has slight relief from 5 to nut, and has de-laminations

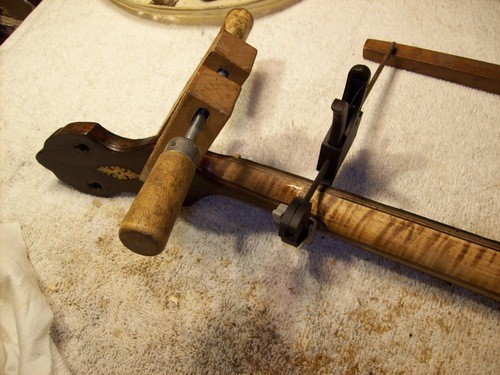

It must be heat pressed, sealed, then compression fretted

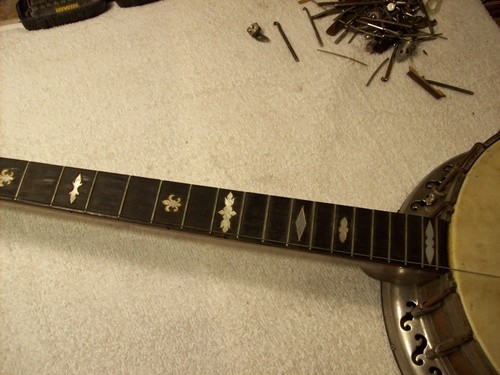

Frets are orig and need replacement
Skin head is broken and needs replacement
All tension hooks are rusty and incorrect, need replacement
Plating is marginal, and will only be cleaned and waxed
Wood needs refinish, will use Nitrocellulose lacquer
Tuners are worn out and need replacement
This instrument is a possible transitional/floor sweep
It has Silver plating as a No. 2, with a Nickel plated flange / tailpiece/armrest like a N0.1
It has No.2 inlay and flamed maple
Dowel is orig., but not stamped
Neck had orig. carving, which appears to have been removed on purpose.
There is a vestige of it left and it will remain.
All I can gather is someone did not like the feel of carving when they played up the neck?
Rim has serial number
Resonator has paper label
It has an assortment of tension hooks, with 3 styles of Bacon nuts
King Armrest
Pat. Pend. Oettinger tailpiece, missing all orig. thumbscrews
Neck has slight relief from 5 to nut, and has de-laminations
It must be heat pressed, sealed, then compression fretted
Frets are orig and need replacement
Skin head is broken and needs replacement
All tension hooks are rusty and incorrect, need replacement
Plating is marginal, and will only be cleaned and waxed
Wood needs refinish, will use Nitrocellulose lacquer
Tuners are worn out and need replacement

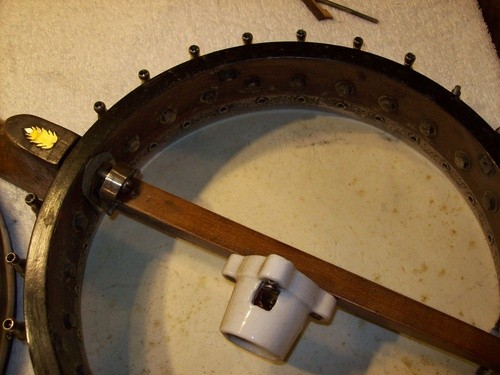

It is an original unstamped BD dowel

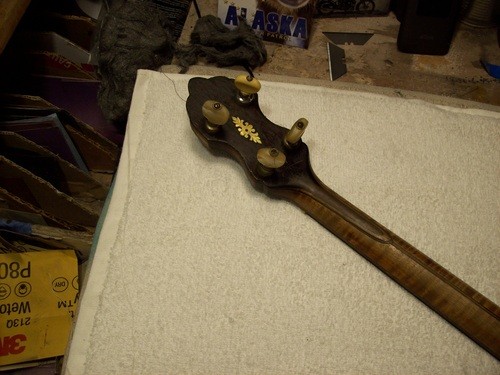

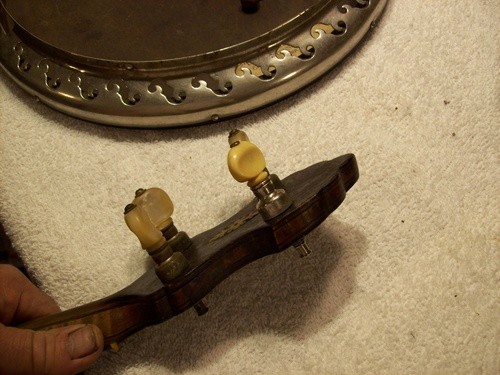

Planet tuners are in need of replacement

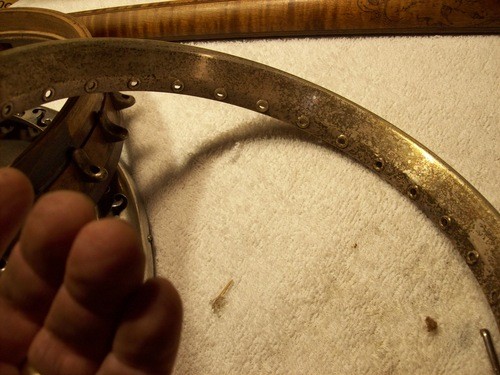

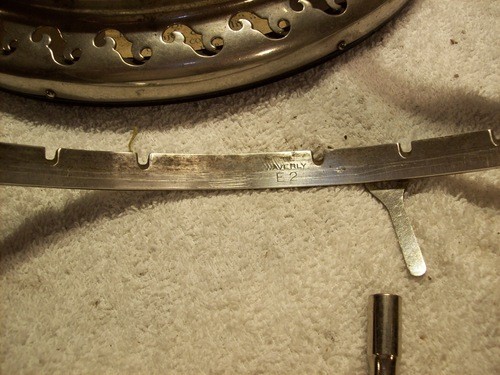

Waverly E2 hoop

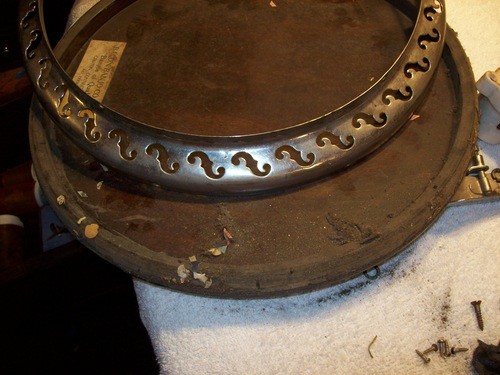

Will clean and buff nickel flange

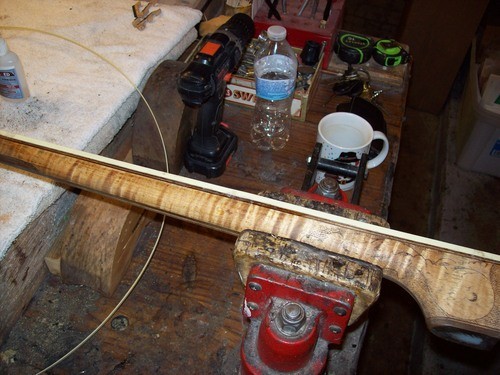

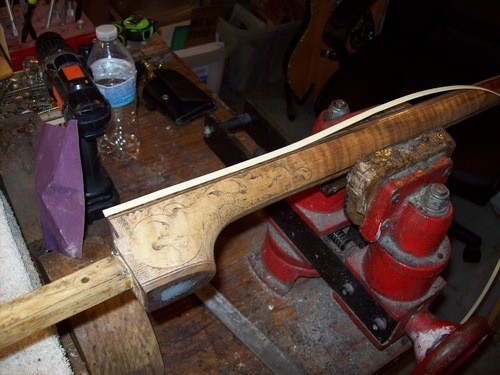

Sealing the backstrap

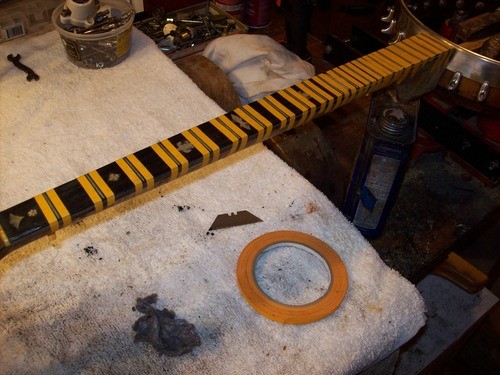

Taped to pull frets
One side done

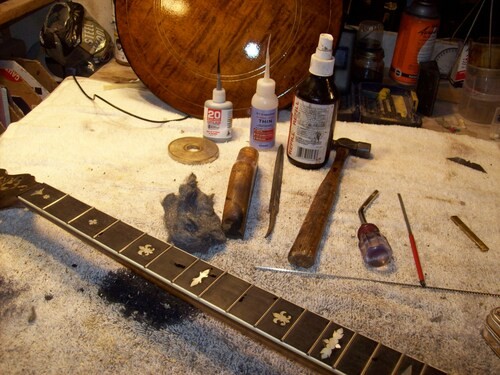

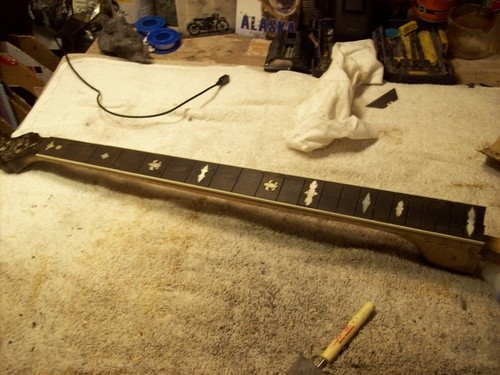

Ready for frets and side dots
Finishing the fingernail divot repairs

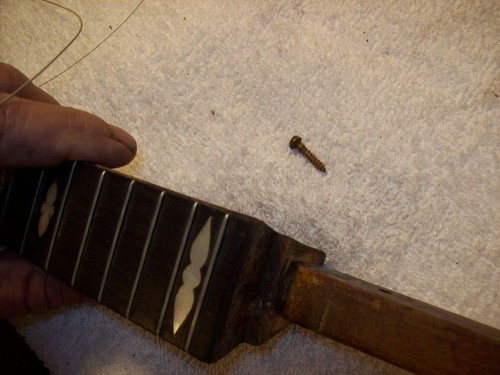

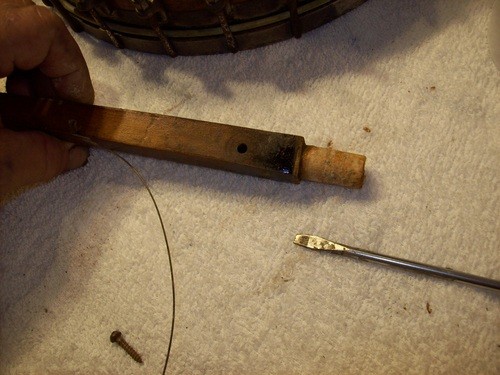

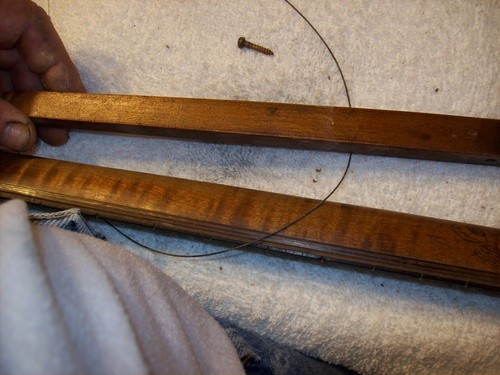

Dowel isloose, has a screw holding it

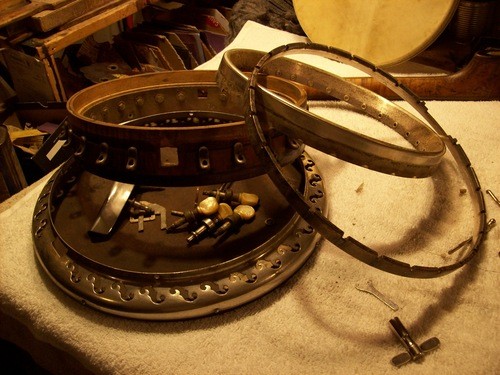

Ready to clean hardware

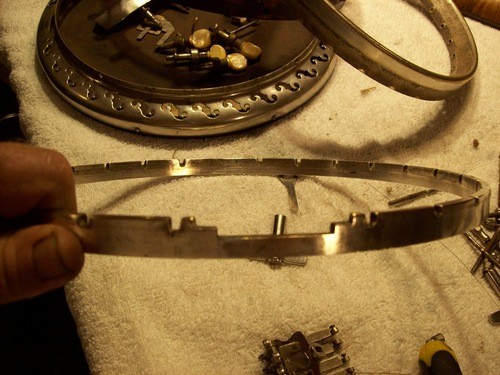

Was made for either 5 or 6 string, and modified before plating

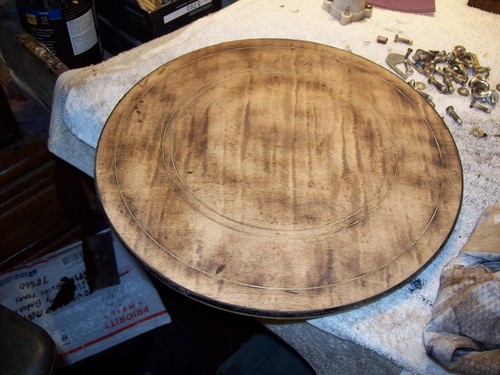

Stripping the finish

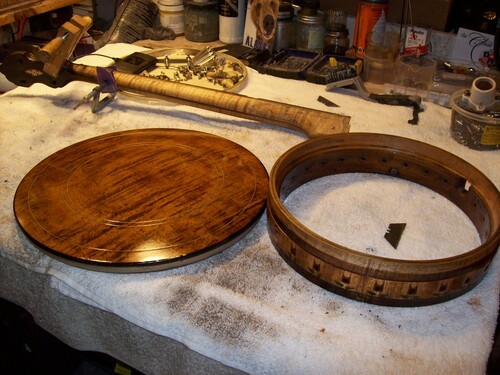

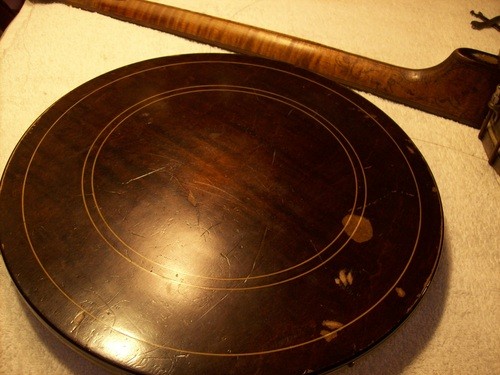

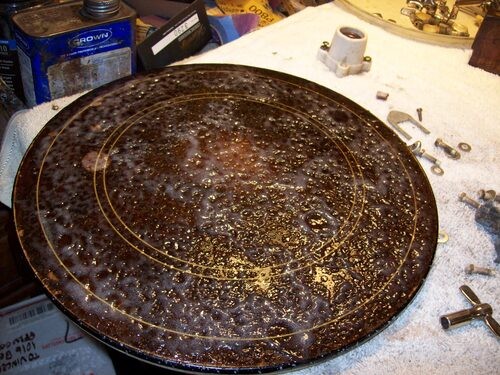

New finish on Resonator and rim

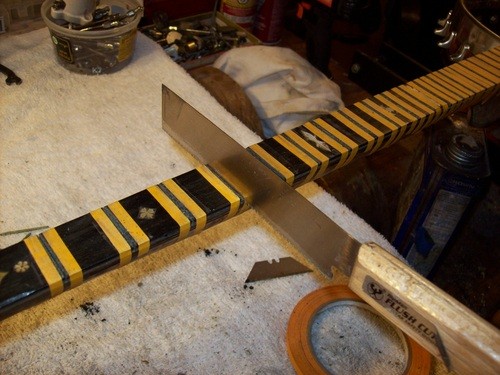

Sawing to correct depth for modern wire
Moving along
All cracks repaired, adding new dye

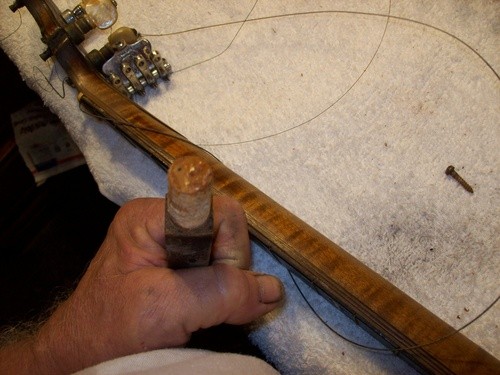

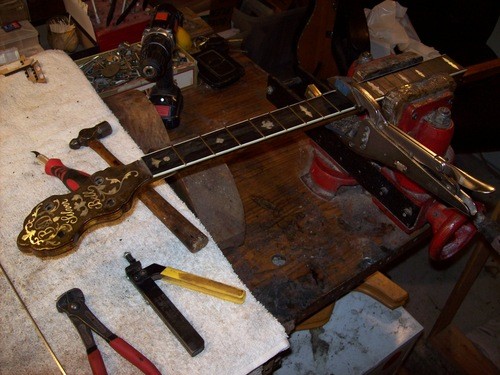

Compression fretting down the neck

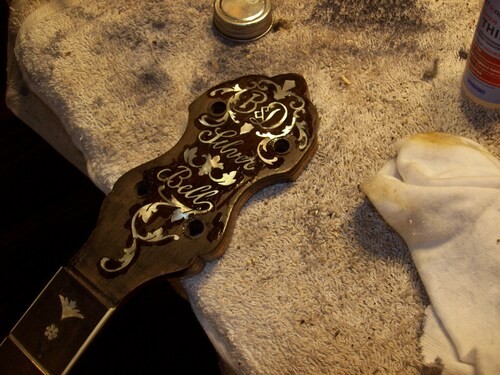

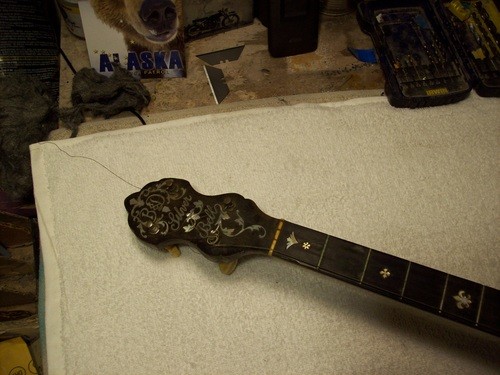

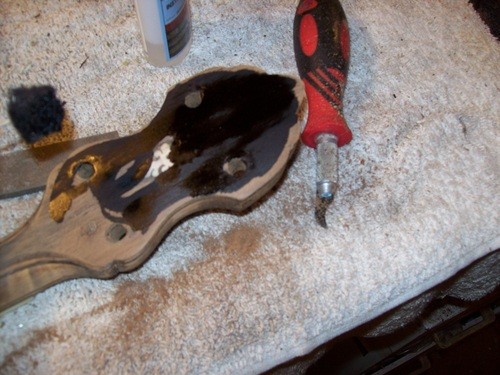

Peghead cracks and inlay sealed, ready for dye / lacquer
I will reset it
Orig Hide glue puddle

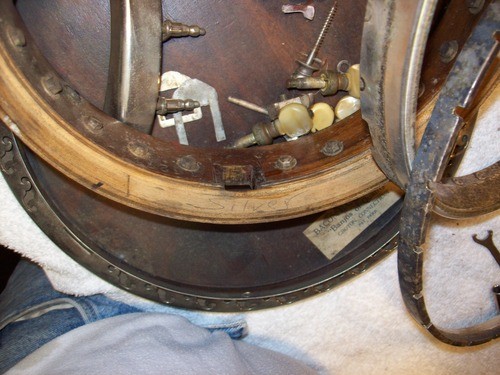

"Silver" penciled in by worker
Silver tarnish

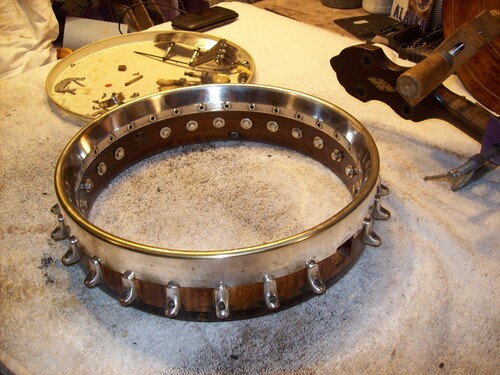

Plating cleaned and waxed

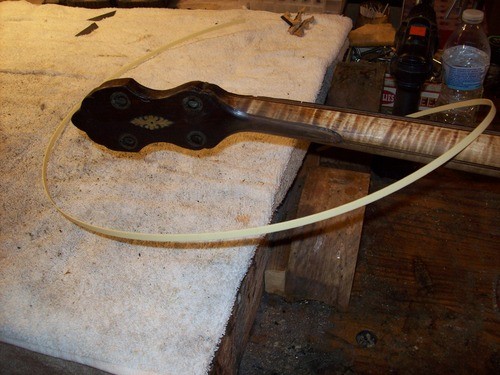

Binding is nitrocellulose, ivoroid grain

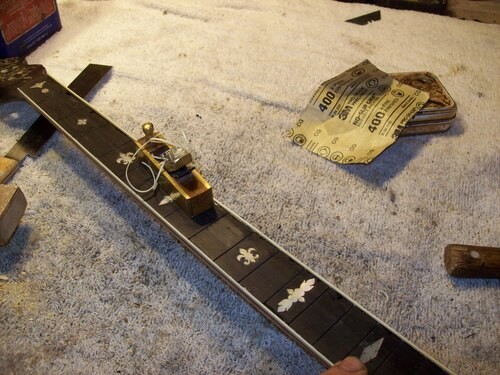

Planing the top

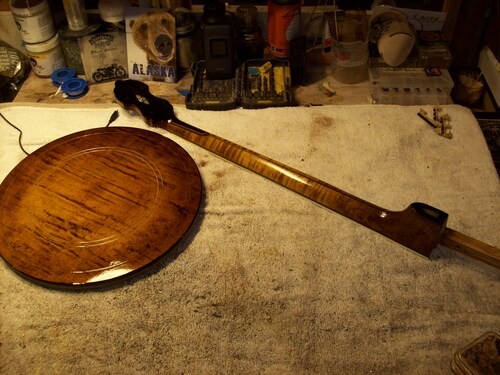

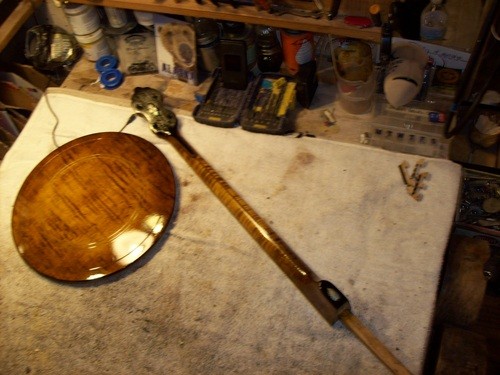

Finish is moving along, fade at heel, backstrap and resonator edge

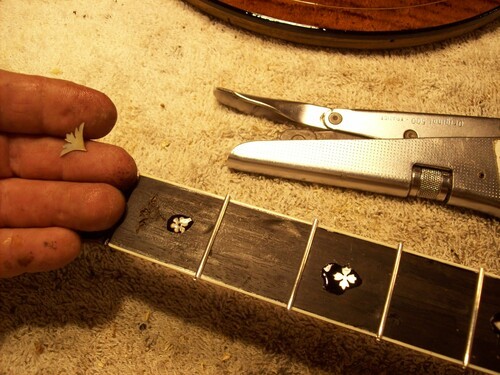

Hammering frets over heel, knocked some inlay loose. A common prob, will reseal them all now.

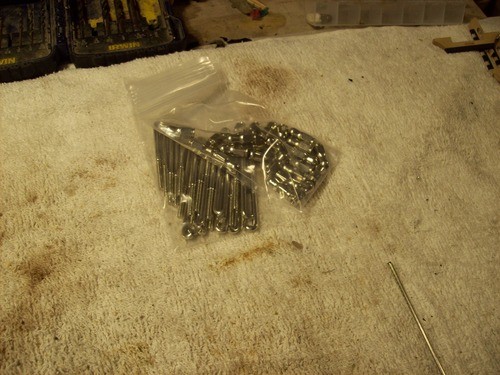

New hooks arrived from Stew Mac
More To Follow
